SCANNING TECHNOLOGIES

3D DATA ACQUISITION, DIMENSIONAL ANALYSIS, SURFACE MODELING

DIMENSIONAL
INSPECTION

REVERSE
ENGINEERING

VIRTUAL
ASSEMBLIES

TOOLING
VERIFICATION

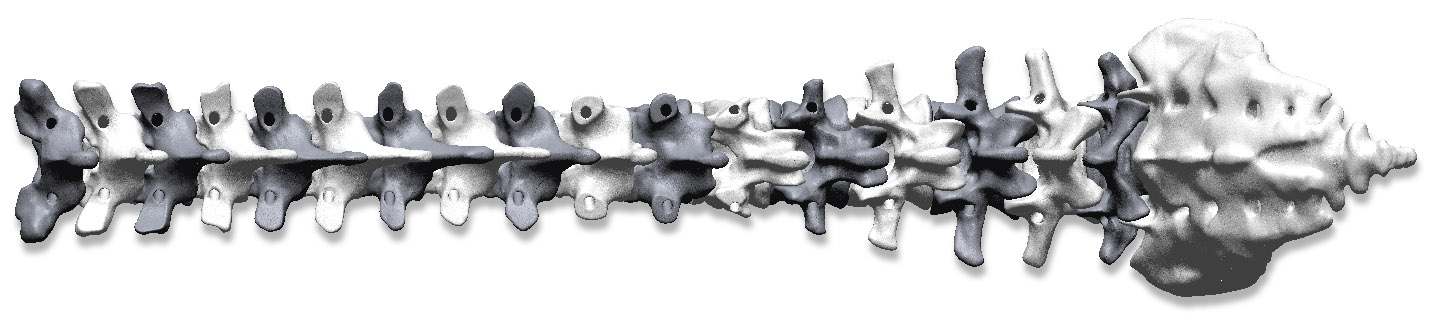

spine3

HARDWARE &
SOFTWARE TRAINING

ONSITE
SERVICES

SCAN TO CAD
COMPARISONS

DIGITIAL
TWIN

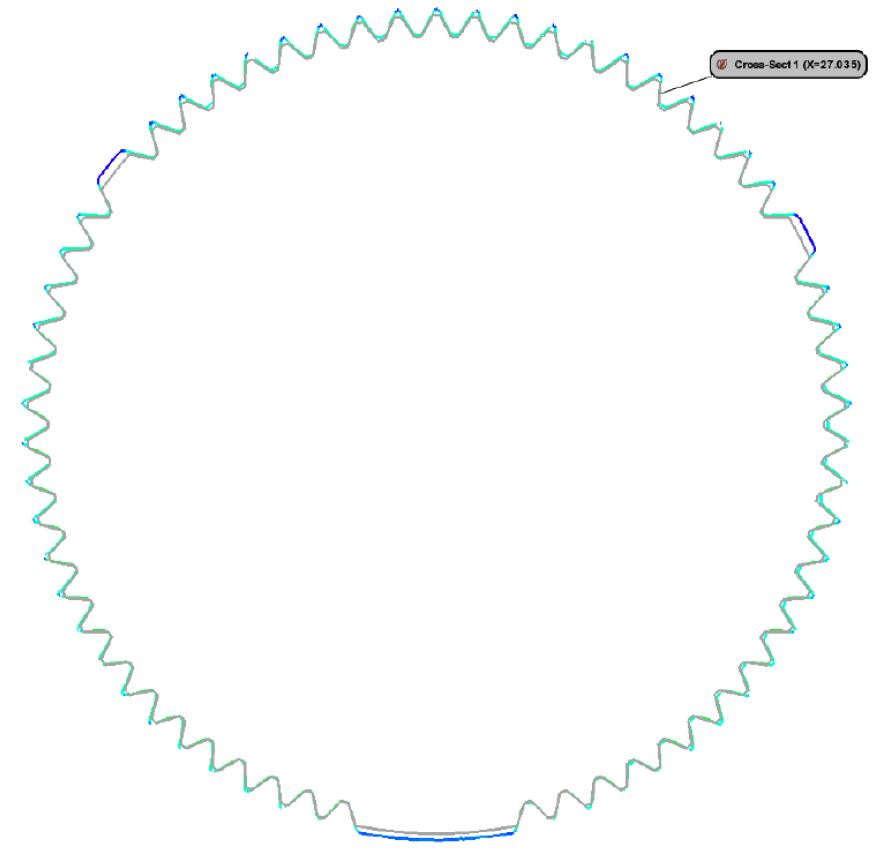

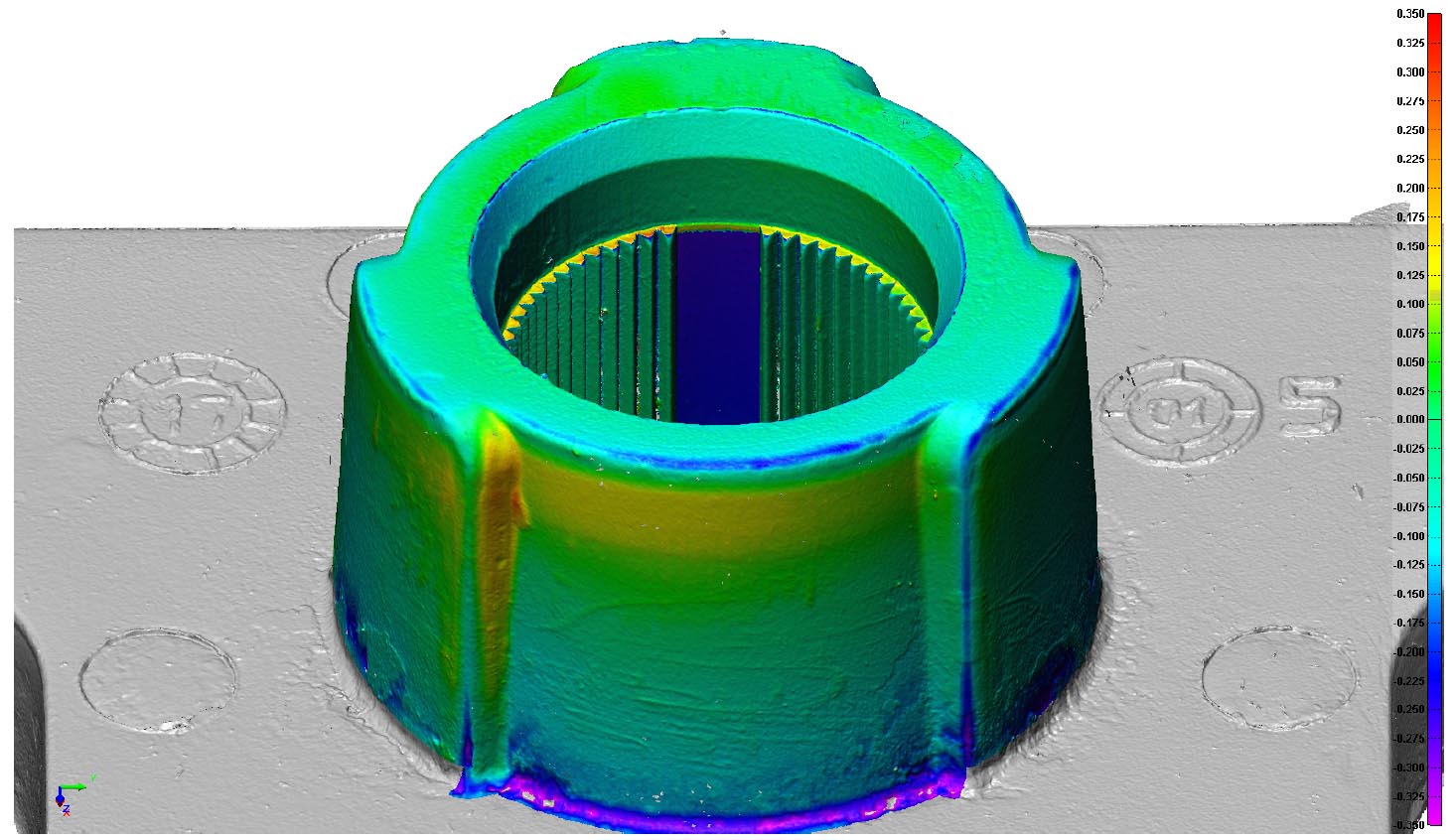

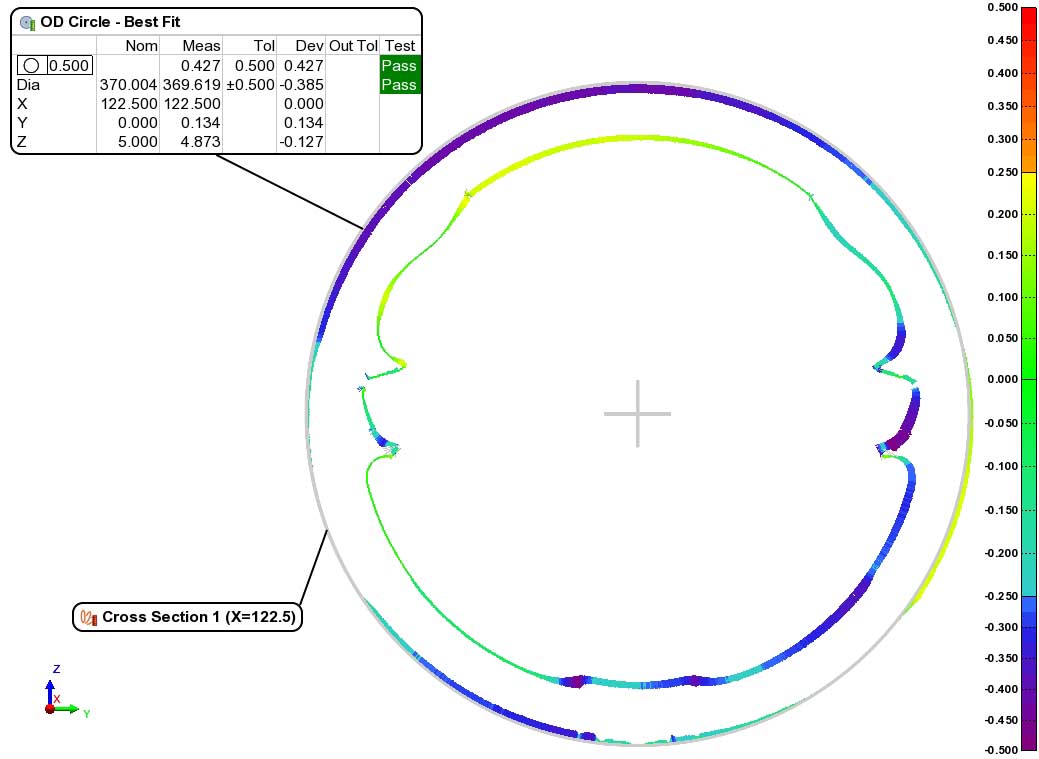

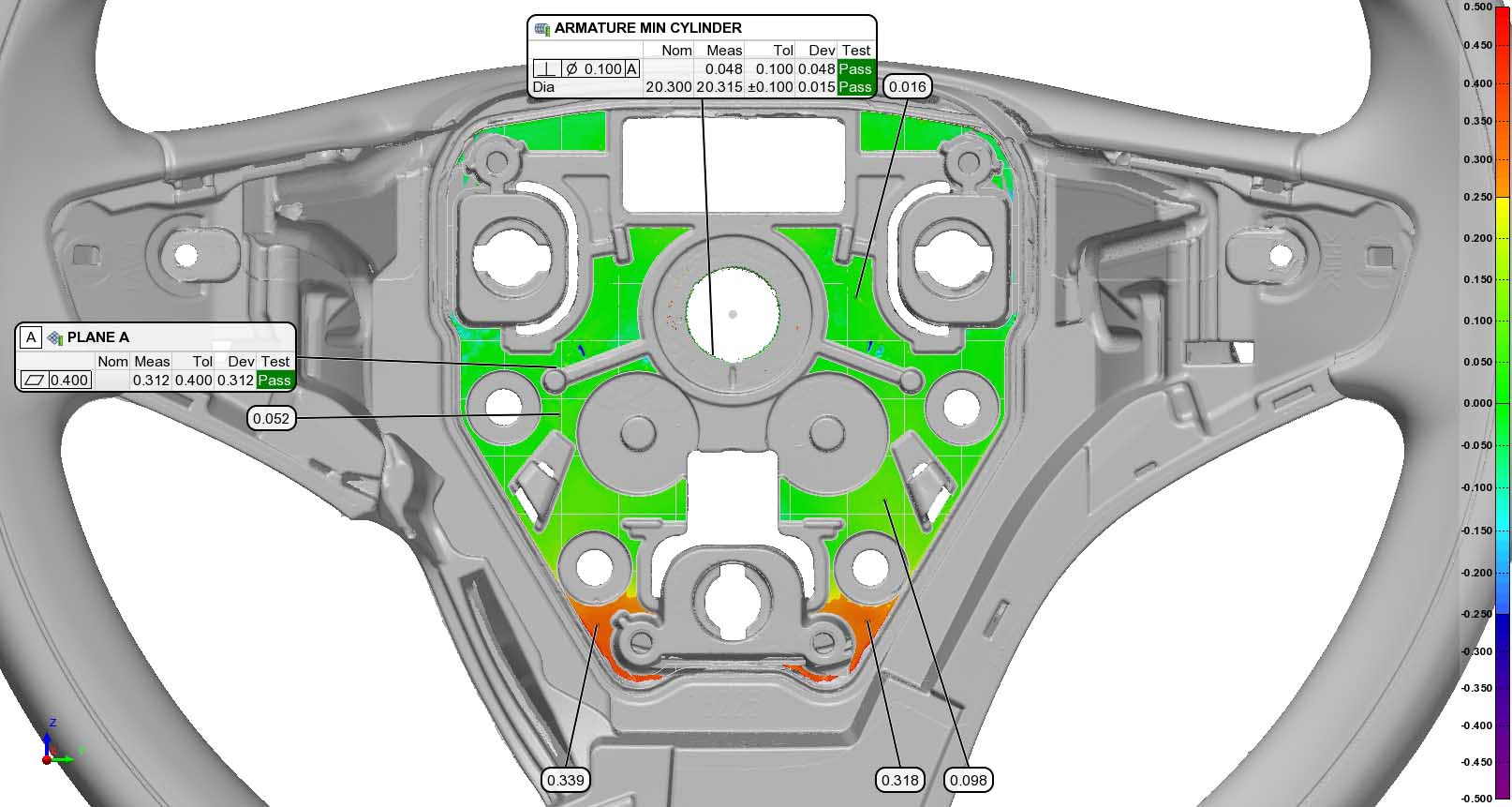

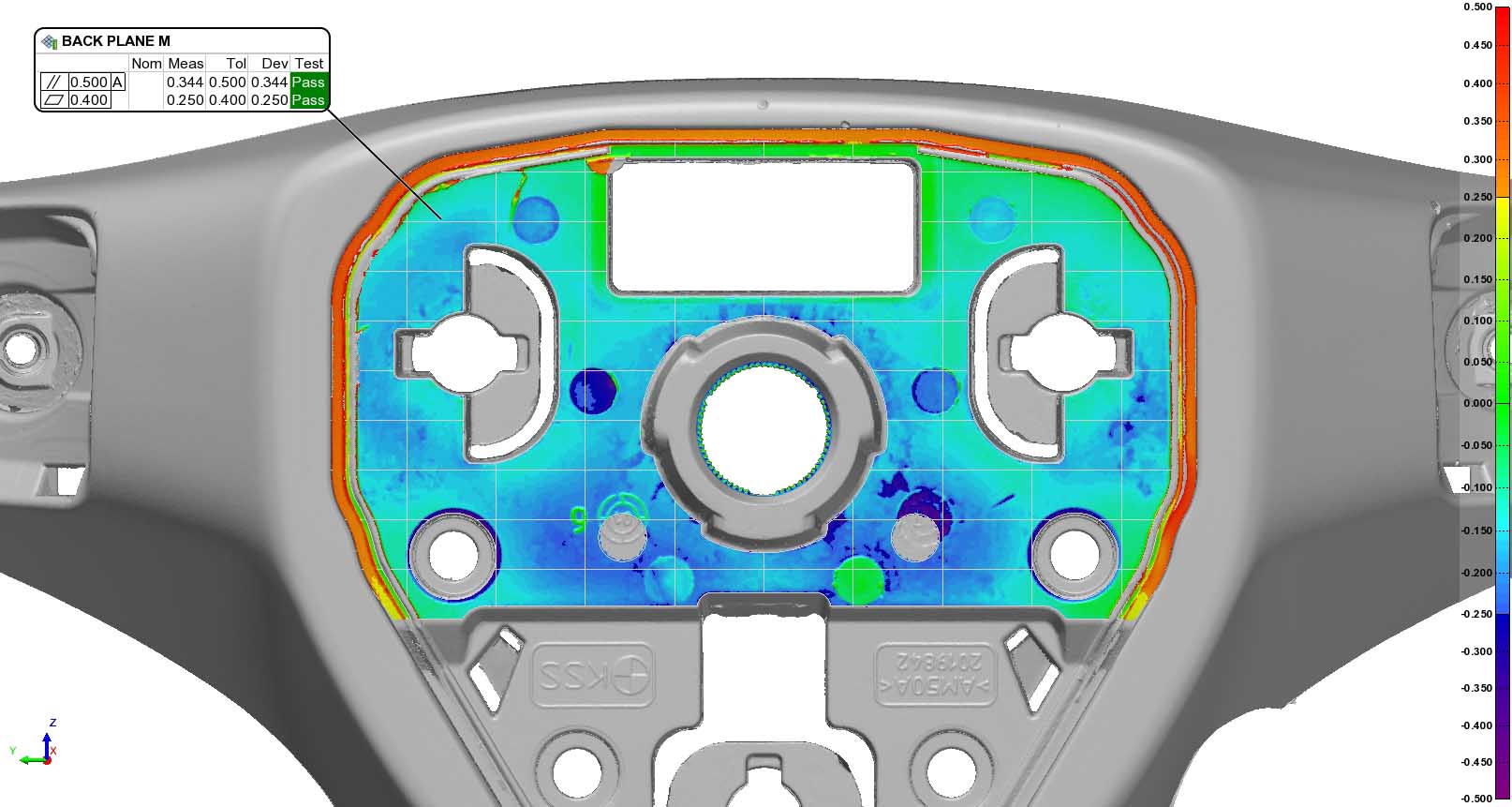

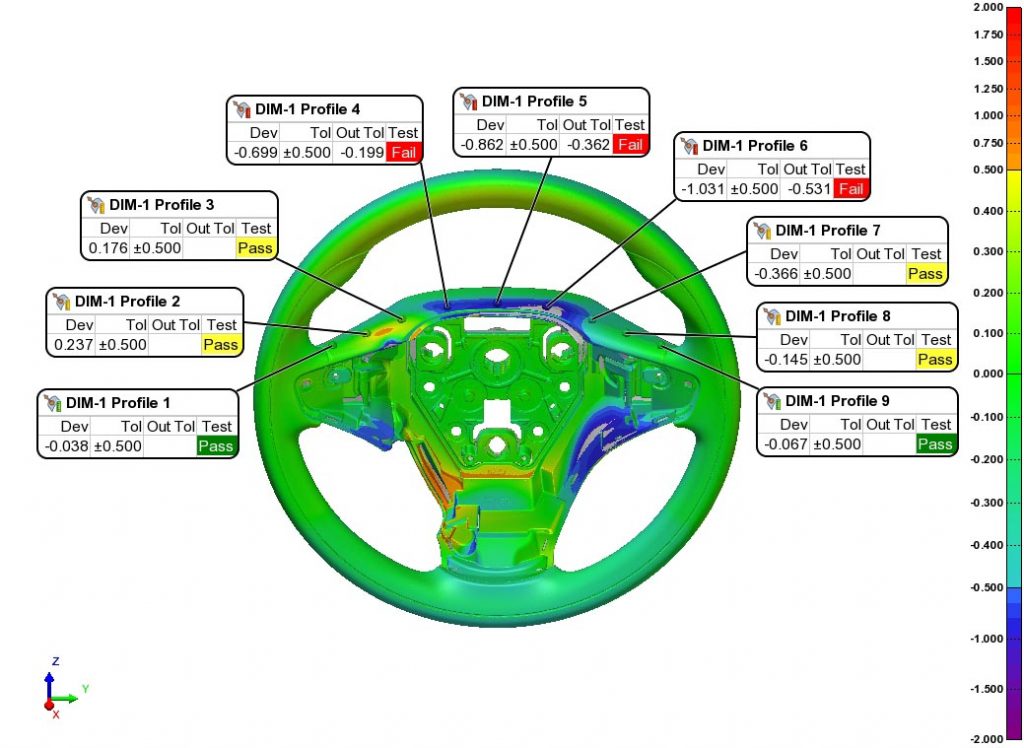

Scan to CAD & Dimensional Inspection

With PolyWorks we can measure all GD&T. Scanning Technologies excel at difficult measurements like profile, cylindricity, and runout.

  • PolyWorks Metrology Suite – utilizing the most powerful 3D metrology software available, we are able to measure true, total surface conditions of scan data. High resolution & density point data means measurement methods have moved from a using a few points to several thousand when representing any given feature
  • Continued Support – We also store your scan files server-side in case you ever need additional measurements pulled, an alignment updated, or a live consultation using original scan data

REVERSE ENGINEERING

If you have an old component with no CAD, or have modified a part to work better, we can reverse create a working CAD model for you.

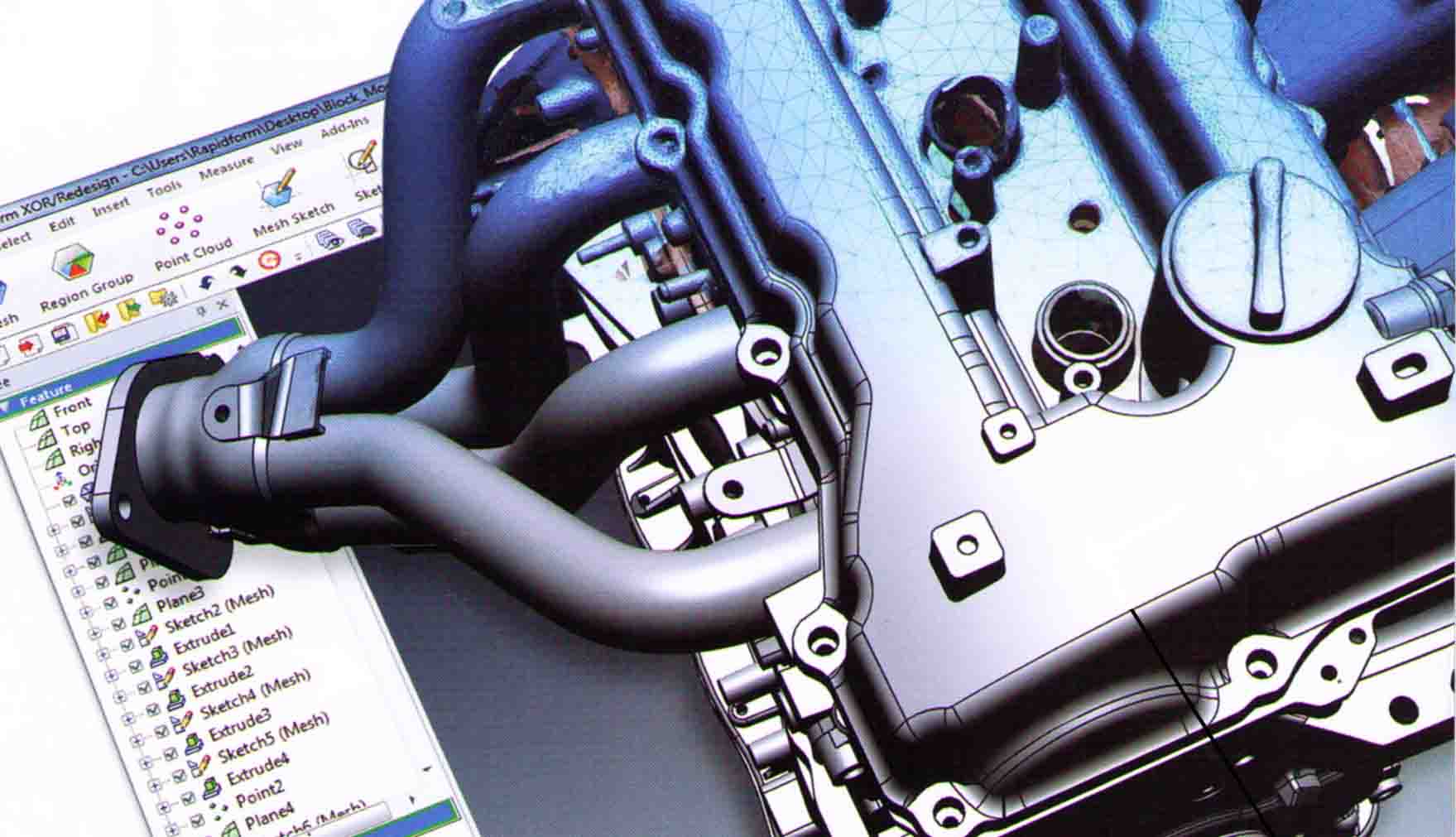

  • Geomagic Design X – the industry’s most comprehensive reverse engineering software, combines history-based CAD with 3D scan data processing. This allows us to create feature-based, editable solid models compatible with any CAD software.
  • PolyWorks Modeler – for the creation of simple solid models that include part deviation into the model. PolyWorks Modeler features unique alignments for 2D cross section CAD models.

Spigot Assembly

Broken Diesteel Scan

Legacy Controller

Semi Axle

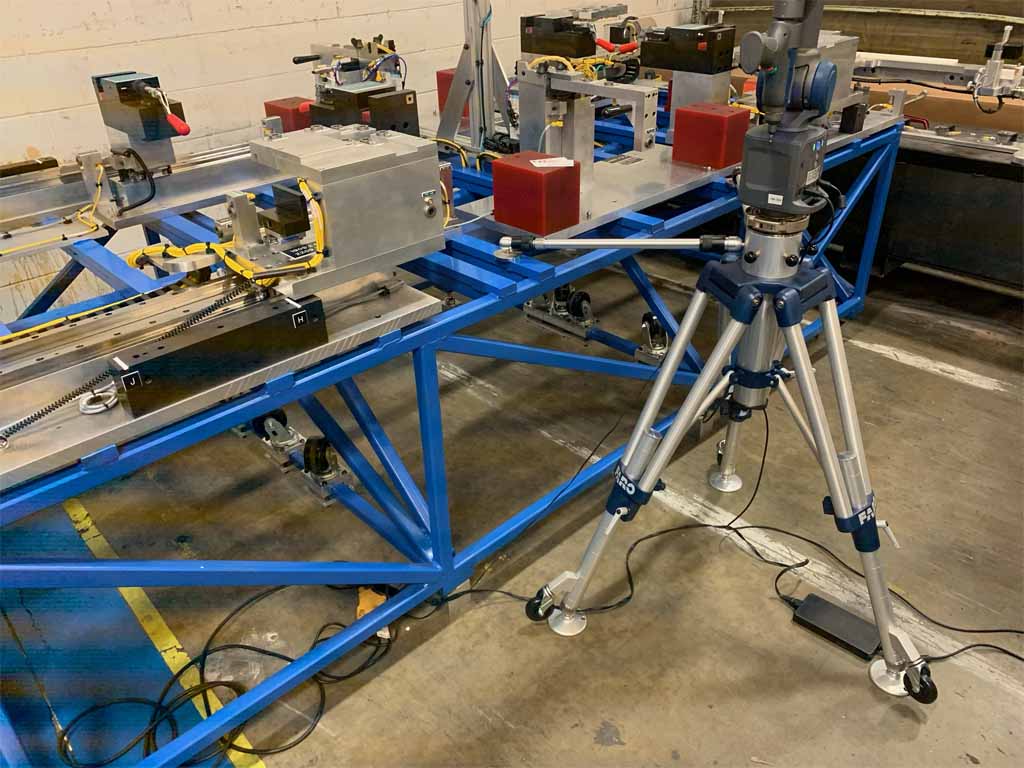

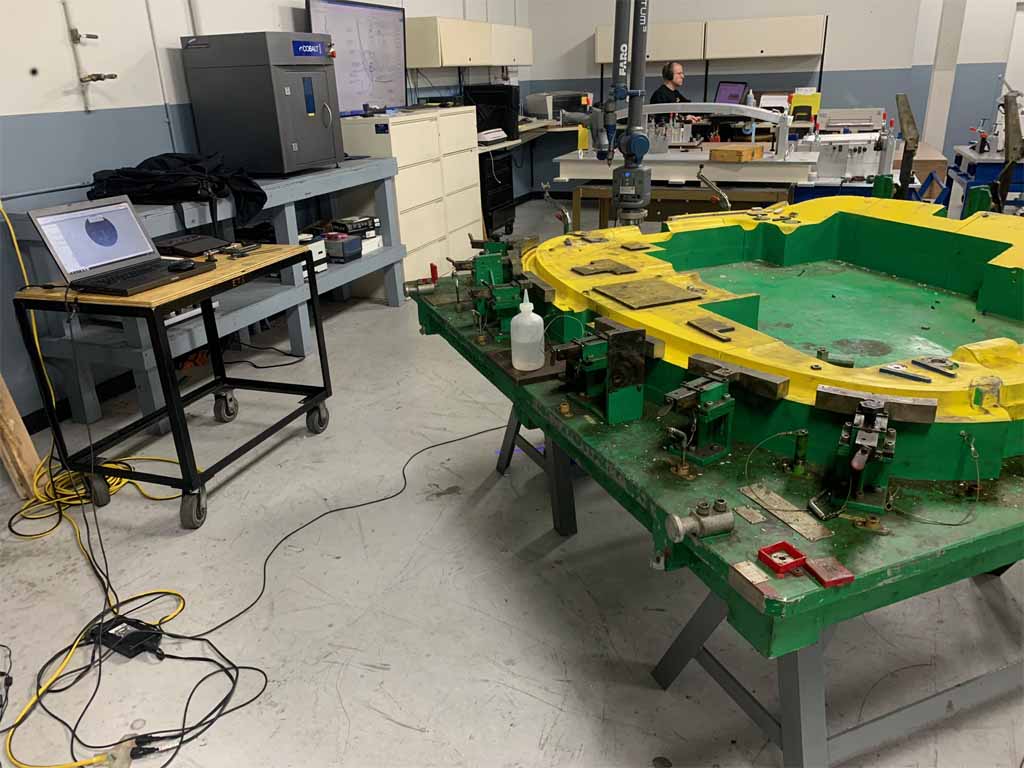

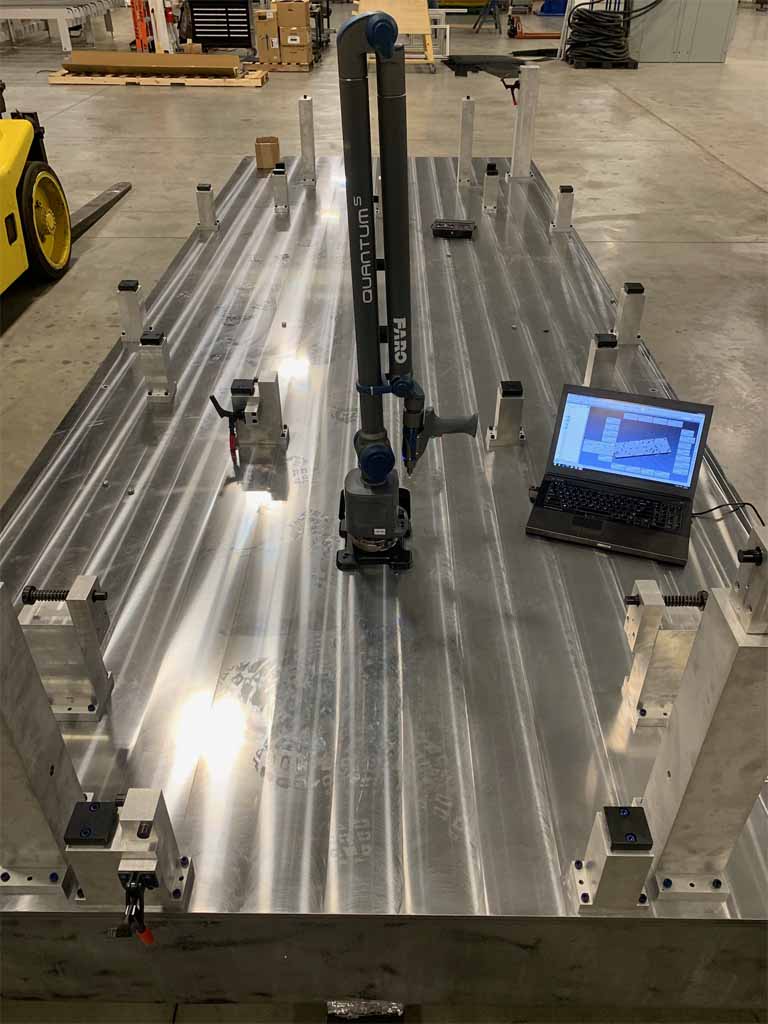

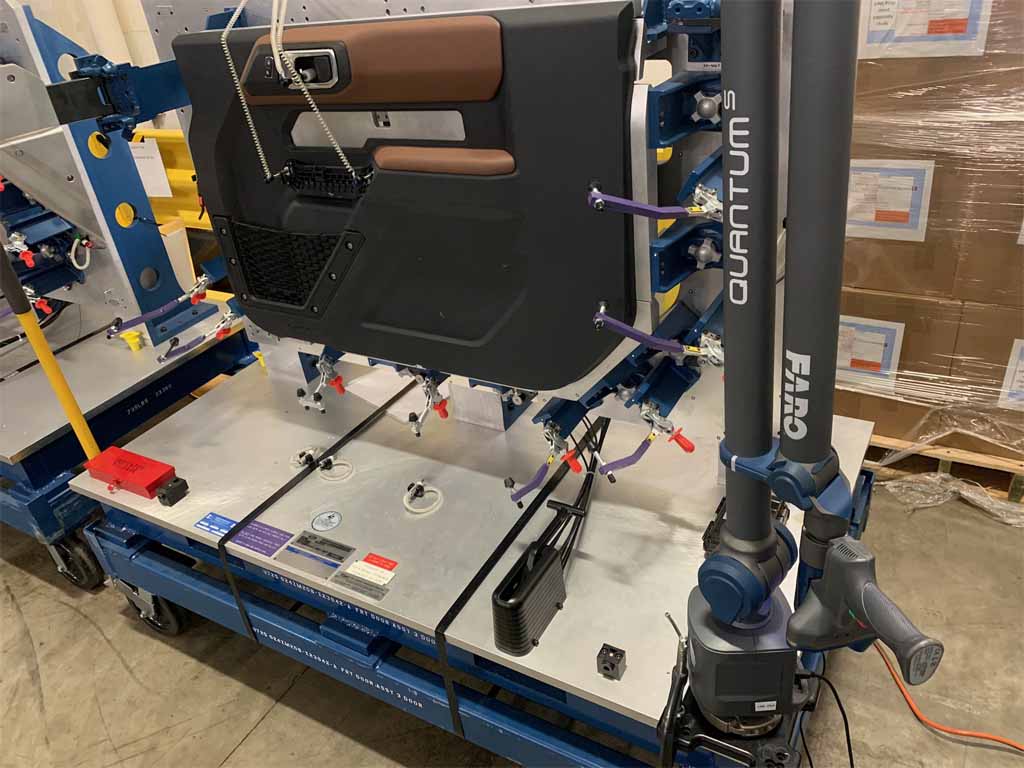

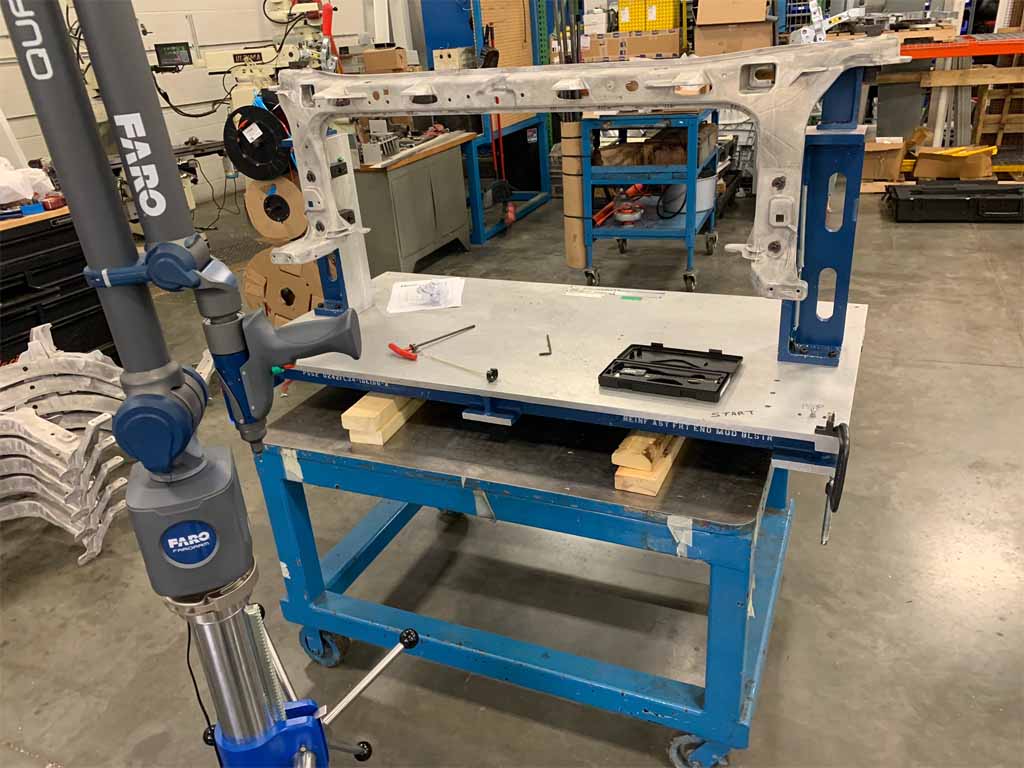

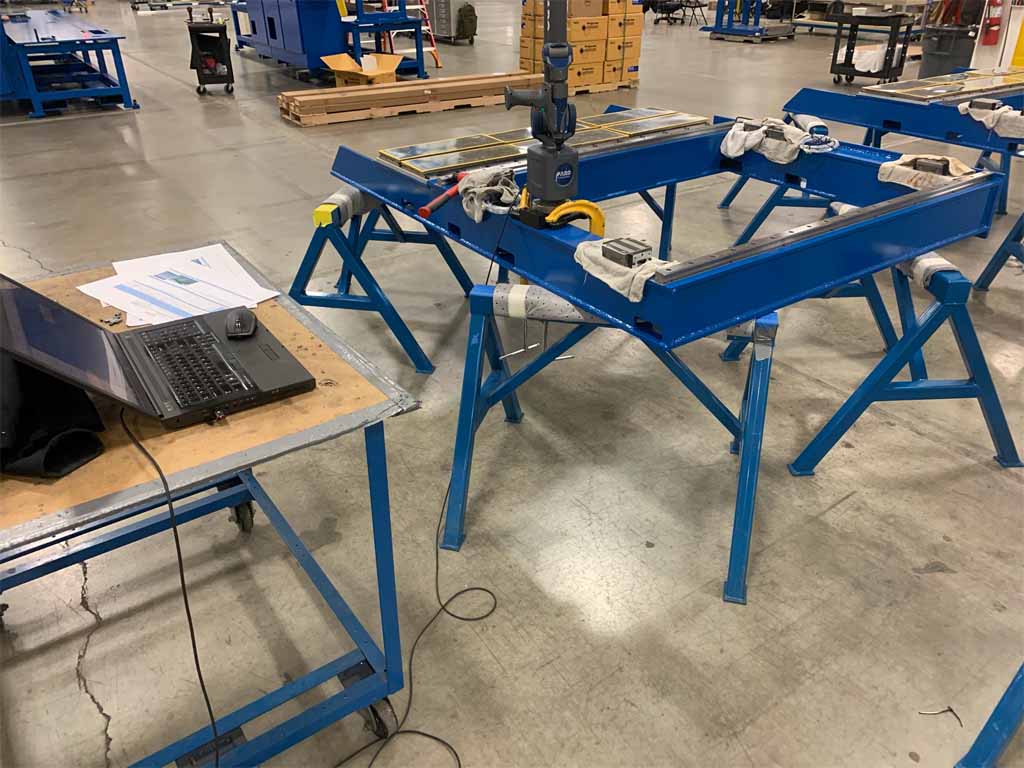

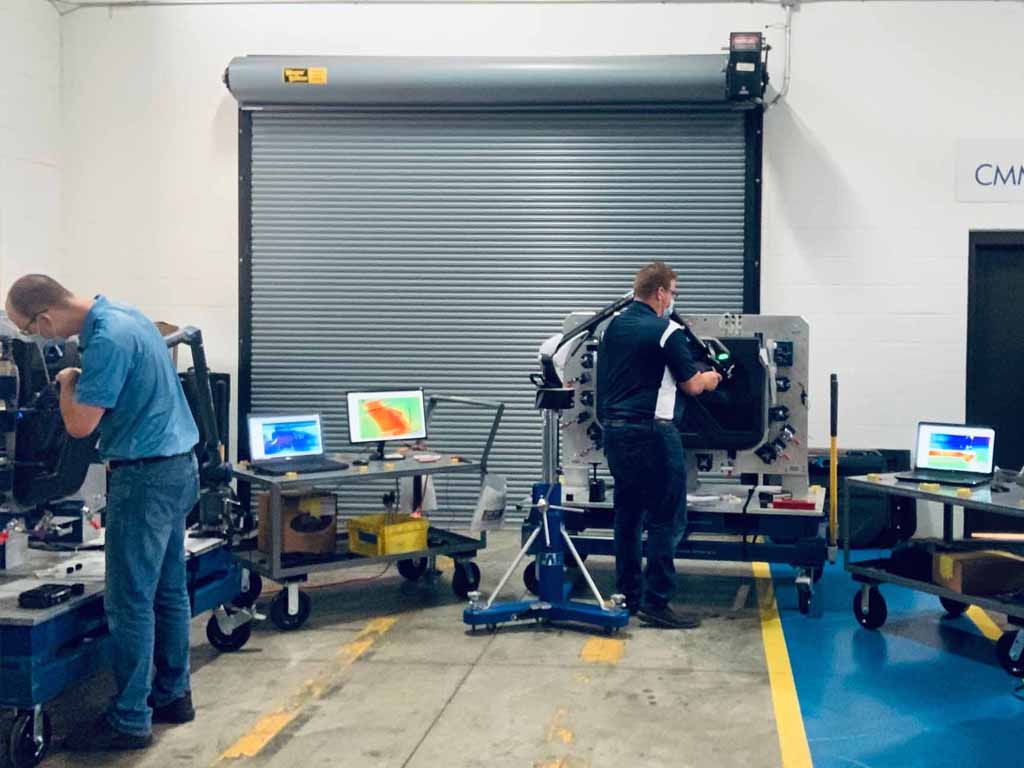

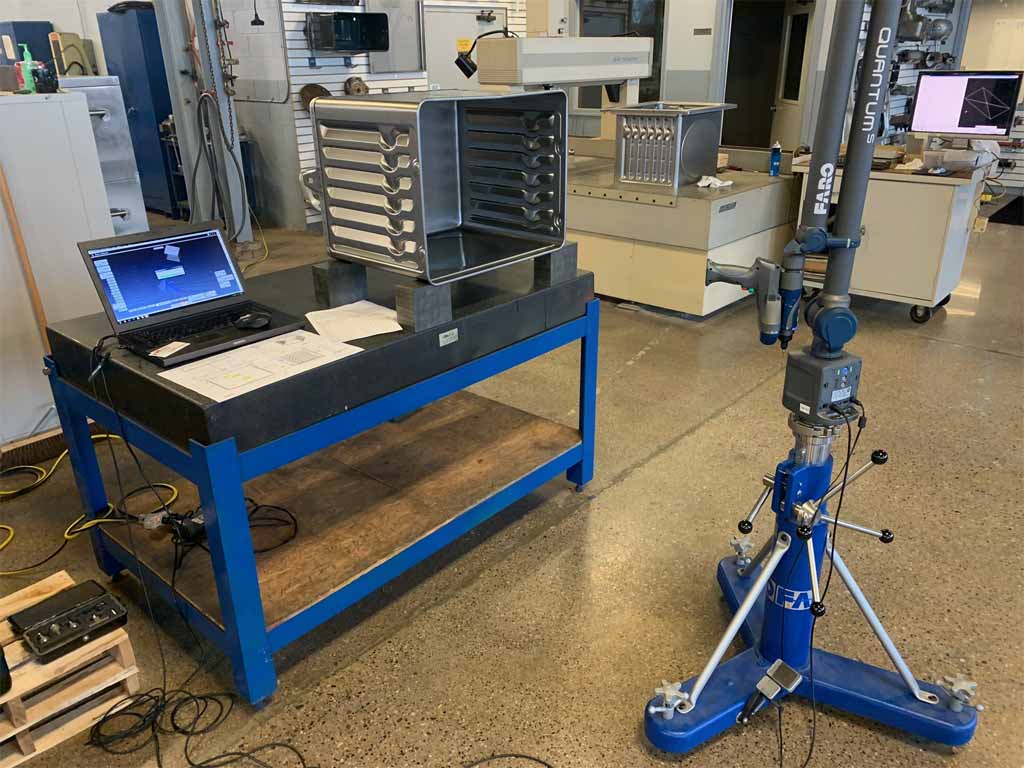

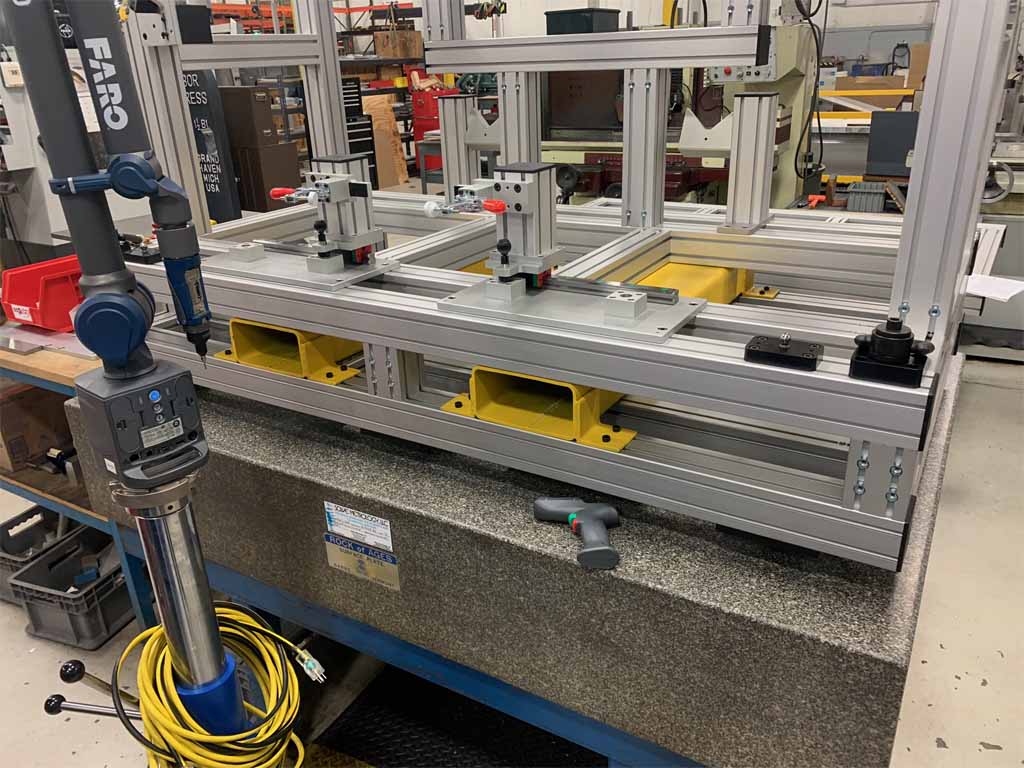

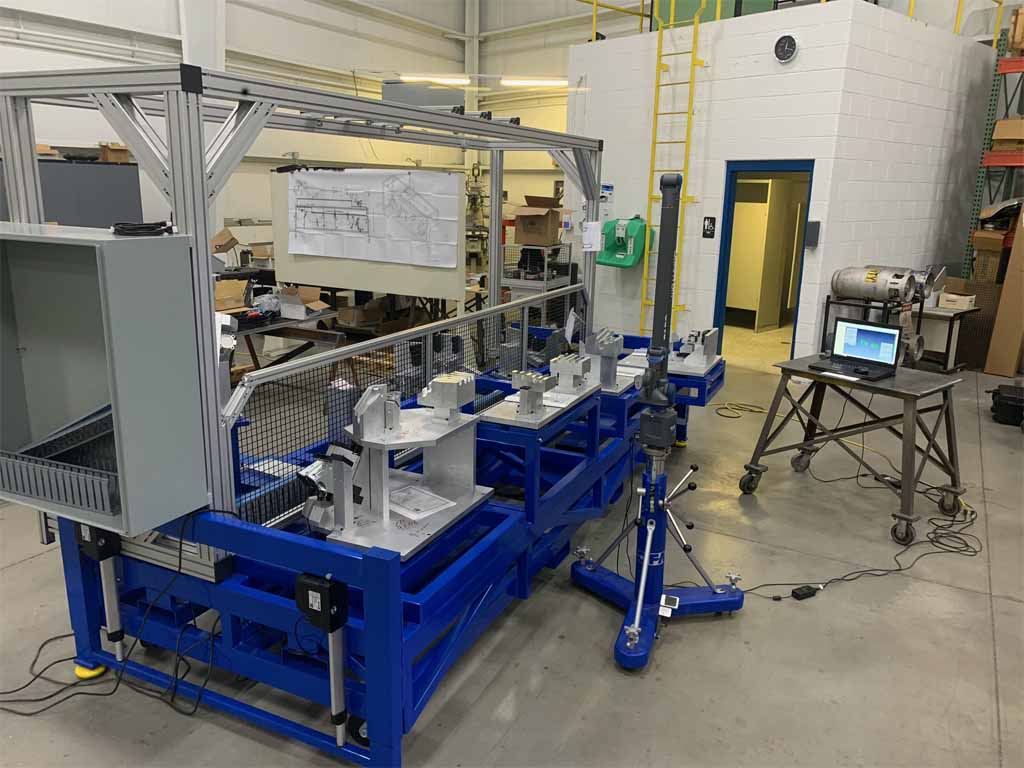

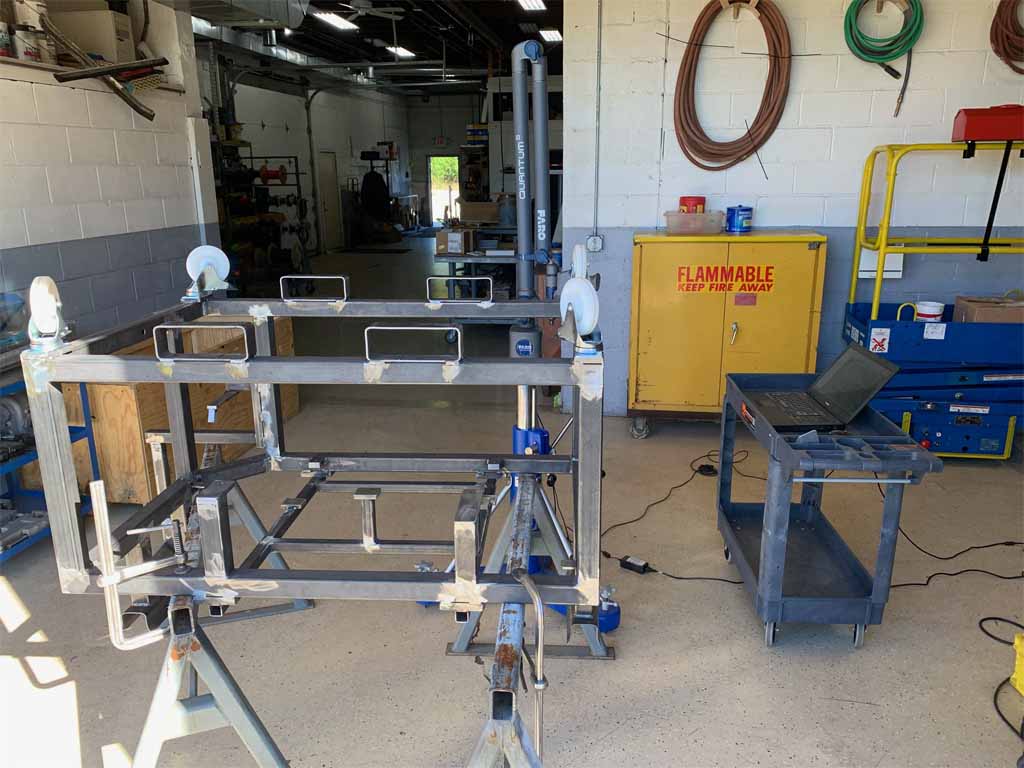

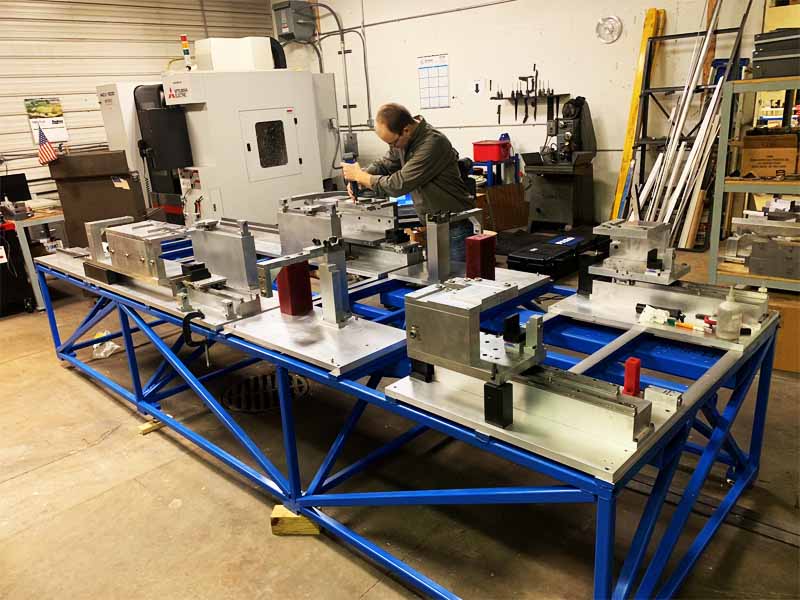

On Site Services

All of our scanning systems – two structured light scanners and two scan arms – are portable.

  • Extreme portability of our measuring devices means we can travel to you for in house inspections, training, and demonstrations. Some of our core services include mold verification and in-process quality assurance.
  • When molds weigh ten tons it’s much easier to transport our fifty pound Faro Arm Quantum S.

DIGITAL TWIN

There is growing demand for accurate digital versions of physical objects. From family heirlooms, hobbyist applications, digitizing physical sculptures and models for reproduction, animation and 3D worlds, scanning technologies are the foundation.

EQUIPMENT AND SOFTWARE

HOVER FOR MORE INFORMATION

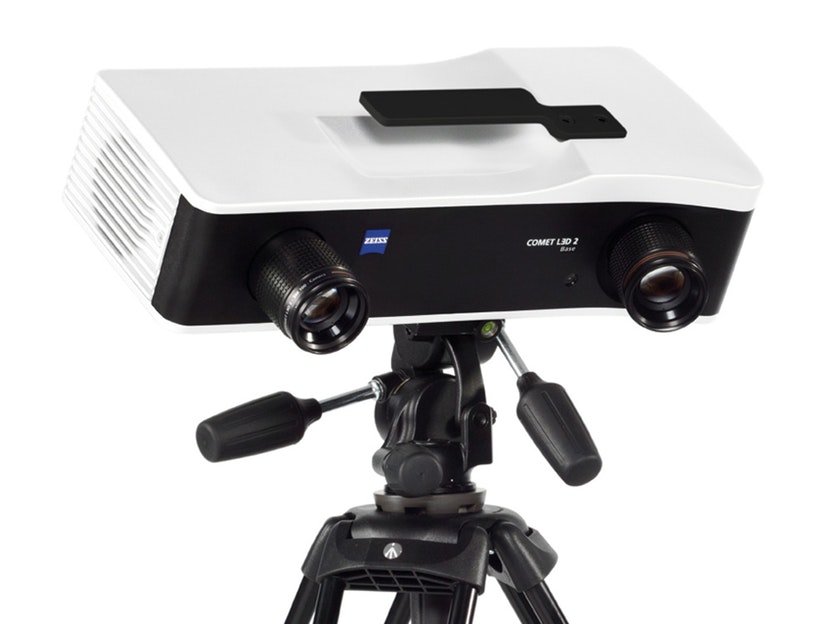

ZEISS COMET L3D 2 - 8 MEGAPIXEL
ZEISS COMET L3D 2 delivers the benchmark in data quality and highly accurate measuring results, making the system the ideal solution for demanding applications in quality inspection.
HEXAGON ABSOLUTE AS1 SCAN ARM
The Absolute Scanner AS1 is the flagship 3D scanning sensor for Absolute Tracker AT960 and Absolute Arm 7-Axis systems. Using cutting-edge blue-laser technology and advanced programming, it combines ‘always-on’ maximum performance...

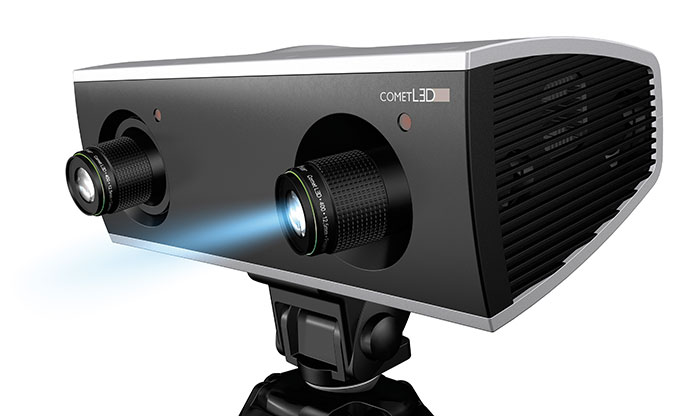

ZEISS COMET L3D - 8 MEGAPIXEL
The ZEISS Comet L3D 8MP is the original blue light solution for users who want to take advantage of the extensive functionality of optical metrology without compromising performance, technology or data quality.
FARO ARM QUANTUM S SCAN ARM
The FARO QuantumS Arm is the world’s most innovative portable coordinate measuring machine that allows verification of product quality by performing 3D inspections, dimensional analysis, CAD comparison, tool certifications, reverse engineering, and more.

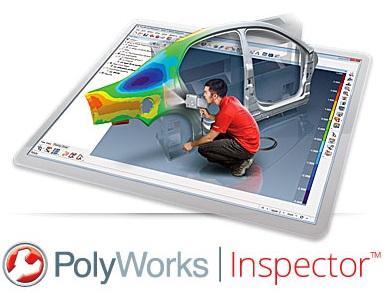

PolyWorks Metrology Suite
PolyWorks Metrology Suite is the industry-standard 3D metrology toolbox for 3D alignments, real-time measuring with multiple GD&T standards, experimental interrogations, reverse-engineering, and comprehensive data reporting.
Geomagic Design X
Geomagic Design X, the industry's most comprehensive reverse engineering software, combines history-based CAD with 3D scan data processing so you can create feature-based, editable solid models compatible with your existing CAD software.
