COORDINATE MEASURING MACHINES

Dimensional Inspection Services

Coordinate measuring machines are the backbone of the dimensional inspection industry. Our 11 CMMs, ISO:17025 certifications, temperature & humidity controlled laboratory, and seasoned metrologists position us as a leading source for contract inspection services like fixture certifications, first article inspections, reverse engineering, and training.

From simple 2D tracing to full dimensional layouts with hundreds of datum reference frames and tens of thousands of dimensions, no project is too simple or complex for us to handle.

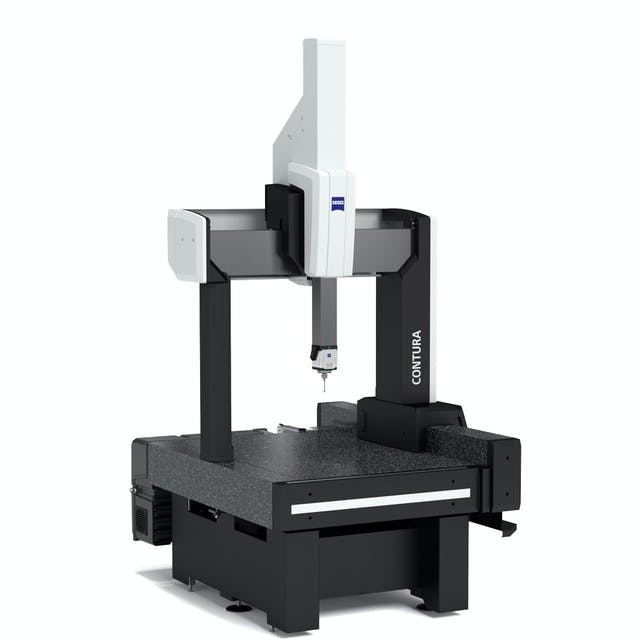

ZEISS CONTURA

THE ONLY ISO:17025 ACCREDITED LAB OFFERING ZEISS CMM SERVICES IN MICHIGAN

MASS TECHNOLOGY

a large number of ZEISS sensors can be operated with high precision and quickly replaced on the same measuring instrument

CUSTOMIZABILITY

from Industry 4.0 connectivity to a variety of interchangeable sensors and modifications we can adjust our services accordingly

zeiss-contura-2019.ts-1556807371038

1.6 MICRONS

a large number of ZEISS sensors can be operated with high precision and quickly replaced on the same measuring instrument

MEASUREMENT VOLUME

900mm x 1200mm x 800mm

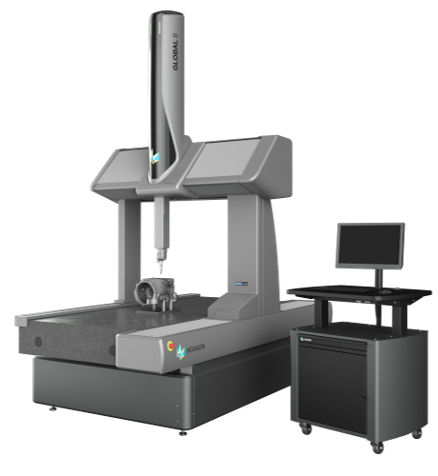

HEXAGON GLOBAL S

ACCURATE HIGH SPEED SCANNING

with an advanced vibration-reduction system which guarantees accuracy even during high-speed scanning

UNKNOWN PATH SCANNING

GLOBAL S can scan the most complex unknown profiles at high speed, even on parts with abrupt changes of surface.

bridge-global-s

2.1 MICRONS

Highly-accurate data capture and scanning confidence using Compass technology to compensate for the intrinsic vibration of the CMM

MEASUREMENT VOLUME

1500mm x 3000mm x 1000mm

10 CMMs

As manufacturing becomes more refined and parts more complex, the requirement for accurate & timely measurement services is critical.

With ten CMMs on our scope of accreditation, we have the capacity and capability to keep lead times short.

  • DIMENSIONAL INSPECTION

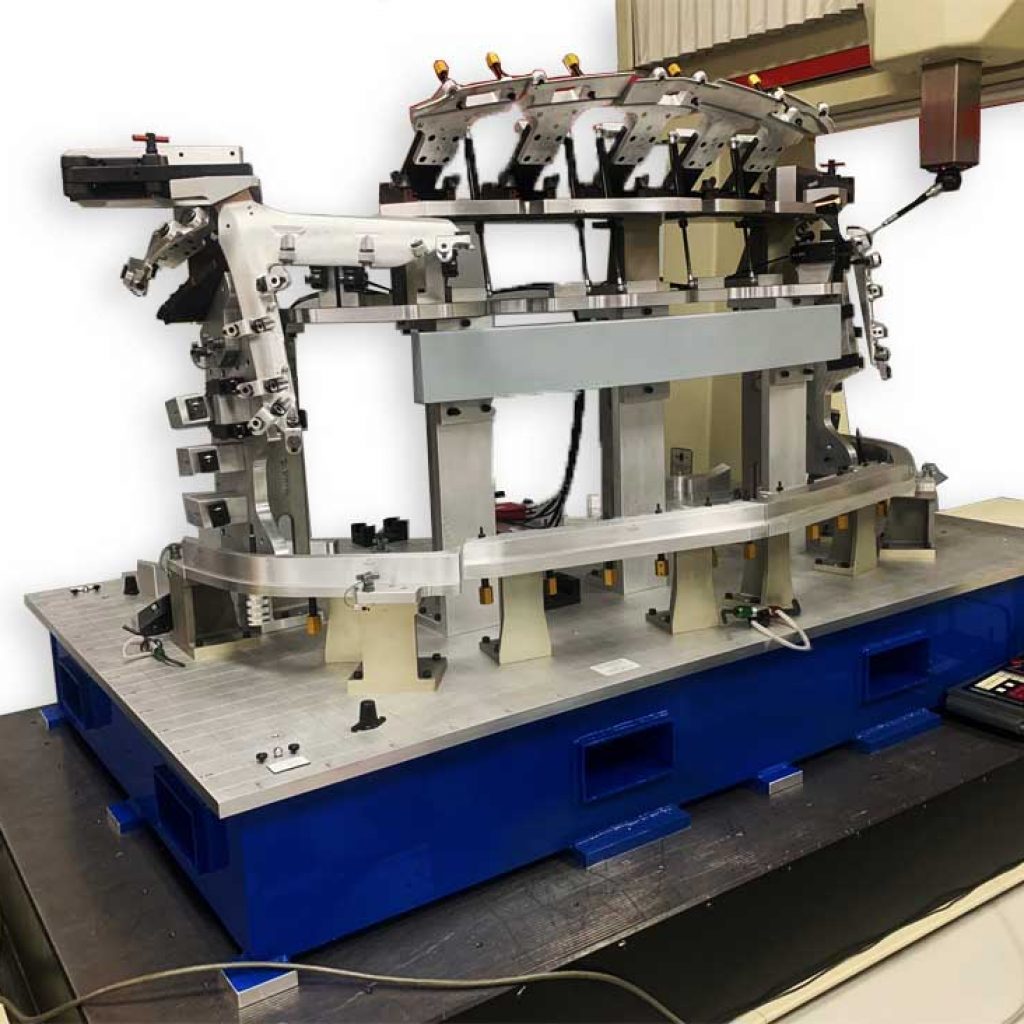

  • FIXTURE CERTIFICATIONS
  • GD&T CONSULTATIONS
  • SALE OF PROGRAMS
  • PC-DMIS & CALYPSO TRAINING

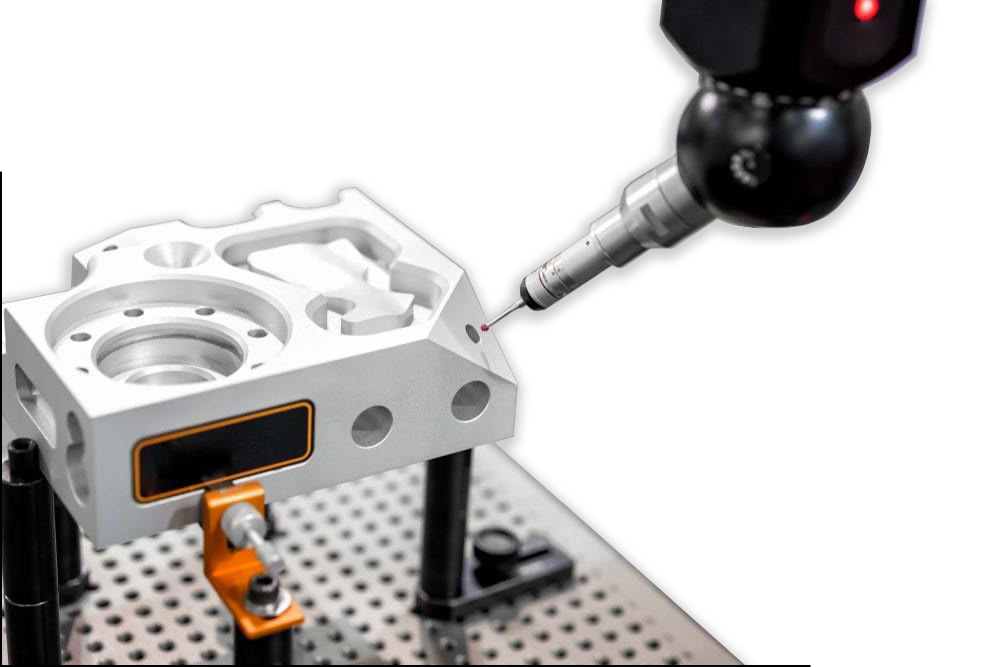

  • PROBE SCANNING
  • CAPABILITY / R&R STUDIES
  • OPTICAL CMM SCANNING
  • Sorting of parts
