LARGER SCAN VOLUMES,
BIGGER WEIGHT CAPACITY,
& DOUBLE THE ENERGY

450kV DIGITAL X-RAY & COMPUTED TOMOGRAPHY

HIGH ENERGY DR & CT

Our versatile equipment and certifications have led to qualified parts in operation from the depths of the ocean all the way to outer space.

Haven Metrology’s first of its kind, custom built 450kv X-ray vault was designed for our clients, and with them we will push the boundaries of non-destructive qualification.

This system offers the industry’s best imaging of complex parts – entire EV packs, aerospace superalloy castings, and composites that require maximum resolution.

piston_bookmark-2
pistons-again-again_bookmark-4

PiXS 450kv VAULT

MesoFocus

With focal spot sizes ranging between the conventional minifocus and the open microfocus, we are the first to offer the 450kV MesoFocus tube by Comet which is a game changer from a technological perspective.

50 – 450 μm

Resolution

Walk-in Vault

This large capacity system combines a temperature control module and precision scales to allow advanced metrology, CAD to CT comparison, and much more.

5x6ft Cylindrical

Working Volume

iRay 1717HS Detector

The iRay 1717HS is the largest, fastest, and highest resolution detector on the market.

139 Pixel Pitch

30 FPS

Heavy Load Manipulator

This premium 8-axis manipulator offers 500lbs of standard load capacity and 2200lbs of torque for heavy and large objects.

CNC Full Motion Control

Rotation & Tilt

Volume Graphics Max

Hardware to Software Integration allows for faster processing and automation using the industry’s premium software.

Helical Scanning

Offset Reconstruction

Artifact Corrections

ALSO OFFERING 225kv, 1 – 125um RESOLUTION
X-RAY/ CT SERVICES

AEROSPACE

AEROSPACE

AUTOMOTIVE

AUTOMOTIVE

ELECTRONICS

ELECTRONICS

GOVERNMENT

GOVERNMENT

MEDICAL

MEDICAL

PACKAGING

PACKAGING

SPACE

SPACE

ADDITIVE

ADDITIVE

MILITARY

MILITARY

SCIENCE

SCIENCE

FURNITURE

FURNITURE

FORENSICS

FORENSICS

COMMON APPLICATIONS

High Energy Digital X-Ray Imaging

High Energy Industrial radiographic testing for castings and forgings like inconel, titanium, copper,  and large electronics, PCBs, and AM components

blade2blend-2

450kV High Resolution, High Speed CT Scanning

High Energy Industrial CT for high density assemblies, castings, EV modules, composites, and stainless steel housings

Composites

Industrial X-Ray and Computed Tomography is used to locate and understand variations in linear density and defects within any type of material. These examples show density variation, inclusions, and fiber orientation.

Library of Inspection Standards

With a collection of standards and gauges in house, and the ability to acquire those we don’t have within days, you can rely on us to meet your NDT inspection requirements.

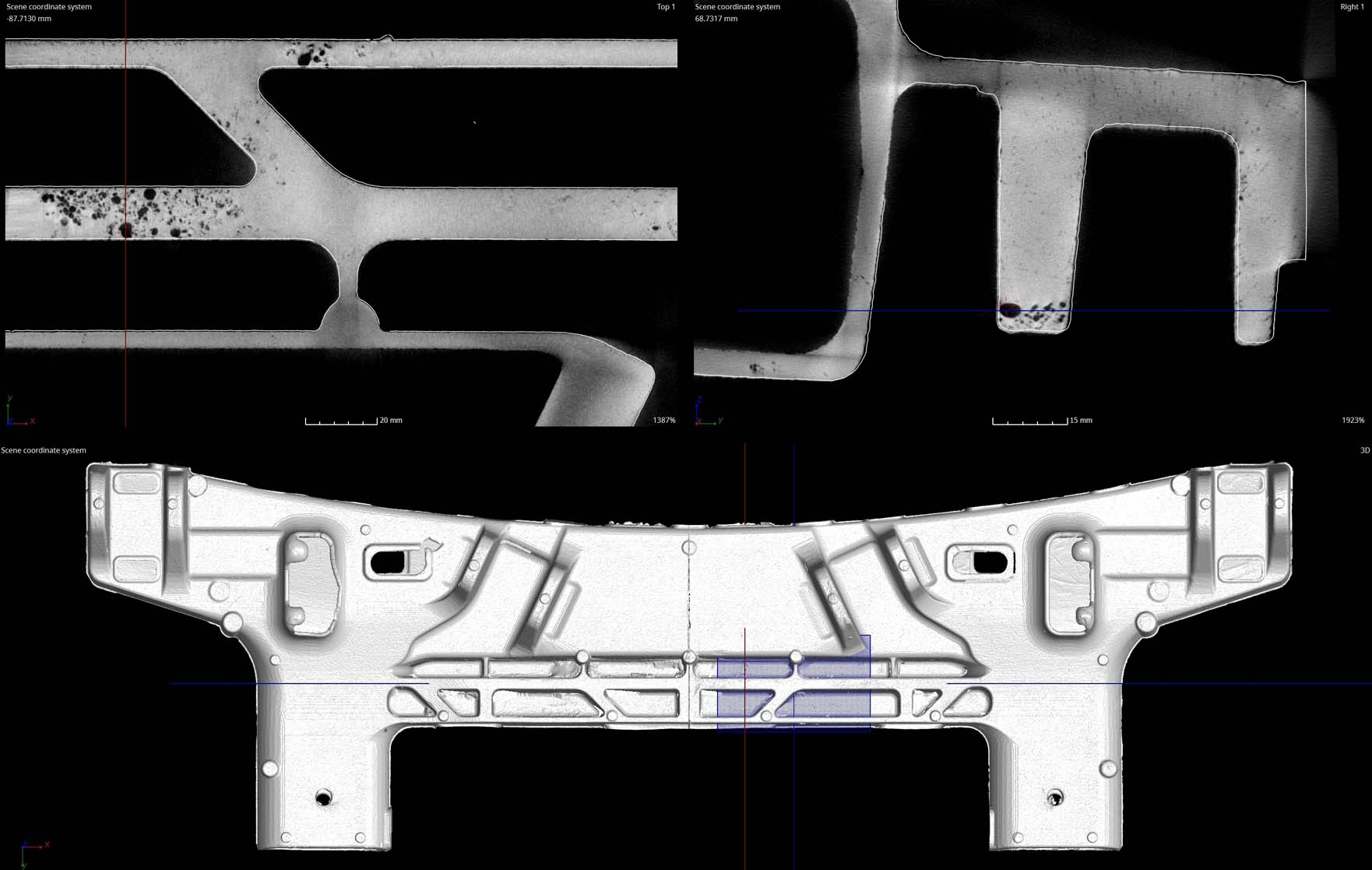

Large Capacity = Large Casting Inspection

This case study demonstrates our unique ability to CT scan a nearly five foot tall casting. Porosity and other defects are witnessed throughout the entire length of the part.

Macroplastics for Interior Inspection

CT scan data can be converted to .stl or other formats to be used for CAD comparisons, dimensional analysis, reverse engineering, mold flow, or FAE. Complex alignments & GD&T can be programmed for automated inspection. This case study shows is a 24x14x10″ 4 piece vibratory welded manifold. All welds are inspected for leaks, penetration, and profile.
