Industrial Digital Radiography of Circuit Boards

 In Case Studies, X-Ray & CT

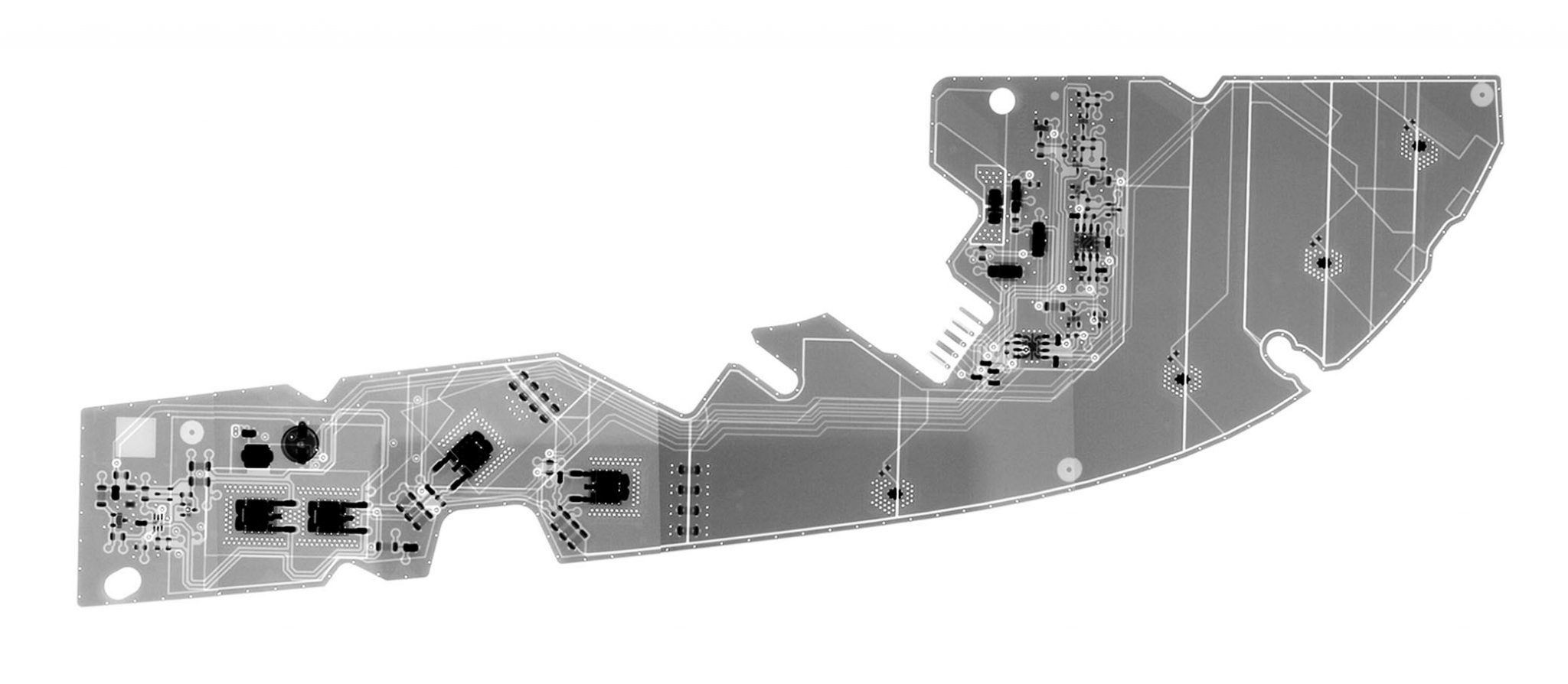

Industrial Digital Radiography for Circuit Board Analysis

Industrial X-Ray & CT scanners allow for high resolution analysis of circuit boards including solder joint porosity measurements, wire sweep, and PTH fill analysis.

This service includes a ballooned map of each measured location, an Excel report with these locations and their associated tolerances, and high resolution imaging of each location.

Industrial Digital Radiography (DR)

With our Nikon XTH 225 ST X-Ray & CT scanner we achieve microns of resolution to visualize and measure the smallest wires and pores. Resolution depends on proximity to the x-ray source which makes this flat boards ideal for high magnification. We can place the boards so points of interest are touching the source.

Serving clients across the globe, Haven Metrology is an ISO/IEC 17025:2017 accredited, ASNT & NAS410 certified, and ITAR registered and compliant contract inspection lab using CMMs with PC-DMIS & Calypso, 3D Scanning with PolyWorks, Industrial CT Computed Tomography & X-Ray Radiography with Volume Graphics, Reverse Engineering with Geomagic Design X, High Accuracy Vision services, and a wide variety of hand measurement tools.
